Colouring my kinome phylogenetic tree...

I have been playing with the kinome phylogenetic tree that I made last week inspired by the paper in Science from Manning et al in 2002. The first thing I want to do is to add color to the lines. This has proved a bit more difficult than I had anticipated and was a steep learning curve. It reminds me that data visualisation is a real combination of art, science, coding, time and effort.

Here is a coloured kinome tree that I am kind of happy with for the moment. I think there is some improving still to do but it's nicer than the one coloured version I made before.

The code below uses a very manual approach to manipulating trees. There are various reasons for that and these include the fact that I want to make an unrooted tree. There are ways to manipulate trees using other packages including phytools and ggtree. However, I'm not able to get them to work well with unrooted trees. There is still more to learn....

Here is the code that I used to draw this and some of the trees that I made along the way:

START
library(ape)
library(RCurl)

# a tree was made using code in a previous blog post.
# see here: http://rforbiochemists.blogspot.co.uk/2017/01/visualizing-kinome-in-r-simple-tree.html
# it's here on github
link <- "https://raw.githubusercontent.com/brennanpincardiff/RforBiochemists/master/phyloTrees/kinaseTree_20161221"

# this will download it into R.
# using read.tree() from ape package
tree <- read.tree(file = link)

# this tree looks quite nice in my opinion and is the starting point of this blog
plot(tree, "u",
     use.edge.length = FALSE,
     show.tip.label = FALSE,
     edge.color = "red")
# but lacking colours for the groups and any labels...

# it seems more traditional to draw trees from left to right.
plot(tree,
     use.edge.length = FALSE,
     show.tip.label = FALSE,
     edge.color = "red")

# with some names... this is slow to draw due to the names
plot(tree,
     use.edge.length = FALSE,
     edge.color = "red",
     cex = 0.25)

# and you can't read the names because there are >500

# to customise this tree in a way we want we need to understand a little more about trees
# we can find out more about an object by writing the name
tree
# "Phylogenetic tree with 516 tips and 514 internal nodes"

# by using the class() function
class(tree)
# "phylo"

# or by using the str() structure function
str(tree)
# "List of 4"
# this list includes $edge, $Nnode, $ tip.label and $edge.length
# the tree$tip.label includes family designation
tree$tip.label  # 516 of these

# from the Science paper, we have seven kinase families:
# kinase categories... TK, TKL, STE, CK1, AGC, CAMK, CMGC
# with the following colours
# "red", "green", "paleblue", "orange", "yellow", "purple", "pink", "green"


# by using the grep()function on the tree$tip.label part of the object
# we can find the tip labels that include "TK/" - i.e. tyrosine kinases
grep("TK/", tree$tip.label)  # gives a list of numbers with "TK/" in tip label
length(grep("TK/", tree$tip.label))
# thus there are 94 tip labels with that are designated TK (not TKL tyrosine kinase like)

# make a vector for each tip.label called tipcol with black on all of these...
tipcol <- rep('black', length(tree$tip.label))

# make a vector with our list of kinase categories
kinaseCats <- c("TK/", "TKL", "STE", "CK1", "AGC", "CAMK", "CMGC", "RGC")

# make a vector of color we want:
colorsList <-c("red", "darkolivegreen3", "blue", "orange", "yellow", "purple", "pink", "green")

# replace colours where grep gives "TK" as red, etc in a loop
for(i in 1:length(kinaseCats)){
  tipcol[grep(kinaseCats[i], tree$tip.label)] <- colorsList[i]
}

# plot with edge length false to see nodes better
plot(tree,
     use.edge.length = FALSE,
     tip.color=tipcol,
     cex = 0.25)
# slow to draw due to text - a bit annoying!

Kinome tree with different coloured labels for different kinds of kinases. Tyrosine kinases are in red.

# trees are made up of nodes and edges.
# its possible to label nodes using nodelabels() function from ape package
nodelabels(cex=0.4)
# labels internal nodes.

Internal nodes of the tree are labelled with the number

# the only way seems to identify the relevant nodes manually
# i.e. the nodes that include the kinase groups that we have coloured
# from the bottom
# for 1st "green" looks like node 574
# for "red" looks like node 607
# for 2nd "green" somethink like 701 but very difficult to see
# for "purple" most of 749 and also north of 726 but I can't read the number
# "blue" node 723
# "yellow" node 885, I think
# "pink" node 955, I think
#  not perfect but getting there....

# adding edge colors
# from 111 to 177 should be green
# from 178 to 364 should be red.
# from 459 to 577 should be purple
# from 578 to 608 should be purple too
# from 641 to 733 should be blue
# from 735 to 850 approx should be yellow
# from 876 to 980 should be pink
# http://stackoverflow.com/questions/34089242/phylogenetic-tree-tip-color
# make a vector for each edge called edgecol with black on all of these...
edgecol <- rep('black', nrow(tree$edge))
edgecol[178:364] <- "red" # "TK/"
edgecol[111:177] <- "green" # "TKL" OR "RGC"
edgecol[641:733] <- "blue" # "STE"
edgecol[1003:1029] <- "orange" # "CK1"
edgecol[735:850] <- "yellow" # "AGC"
edgecol[459:577] <- "purple" # "CAMK"
edgecol[578:608] <- "purple" # "CAMK"
edgecol[876:980] <- "pink" # "CMGC"


plot(tree,
     use.edge.length = FALSE,
     tip.color=tipcol,
     edge.color = edgecol,
     cex = 0.25)

Kinome Tree with text and branches coloured.

plot(tree, "u",
     use.edge.length = FALSE,
     tip.color=tipcol,
     edge.color = edgecol,
     cex = 0.25)

# plot.phylo() function from ape package allows rotation of tree.

plot.phylo(tree, "u",
           use.edge.length = FALSE,
           edge.color = edgecol,
           rotate.tree = -95,
           show.tip.label = FALSE)

# want to add some names at the ends of the branches
# try to find out some tip numbers using
tiplabels(cex=0.3)

# add labels to node 246, 105, 191 and 340
tree$tip.label[246] # "CaMK1d_Hsap_-CAMK/CAMK1"
tree$tip.label[105] # "EphA3_Hsap_-TK/Eph"
tree$tip.label[191] # "TGFbR1_Hsap_-TKL/STKR/Type1"
tree$tip.label[340] # "TNIK_Hsap_-STE/STE20/MSN"

# add these to a list
kinaseLabels <- c("IKKa","ErbB2", "MLK1", "PKCb",
                  "CDK9", "CaMK1d_Hsap_-CAMK/CAMK1",
                  "EphA3_Hsap_-TK/Eph", "TGFbR1_Hsap_-TKL/STKR/Type1",
                  "TNIK_Hsap_-STE/STE20/MSN")

# extract tip.labels
tipLabels <- tree$tip.label

# find these in the alignment - they will be tip labels
labelNo <- NULL
for(i in 1:length(kinaseLabels)){
  labelNo <- c(labelNo, grep(kinaseLabels[i], tree$tip.label))
}
# generates a vector of 9 numbers. Some labels in two names.

# make a vector of blank tiplabels
tipLabels_2 <-  rep('', length(tree$tip.label))

# add the labels we want to the vector...
for(i in 1:length(labelNo)){
  tipLabels_2[labelNo[i]] <- tipLabels[labelNo[i]]
}

# make a new tree
tree_fewLabels <- tree

# replace the tip labels with the shorter list.
tree_fewLabels$tip.label <- tipLabels_2

# remove "Hsap"
tipLabels_2 <- gsub("Hsap", "", tipLabels_2)
tree_fewLabels$tip.label <- tipLabels_2

# plot.phylo() function from ape package allows rotation of tree.
plot.phylo(tree_fewLabels, "u",
           use.edge.length = FALSE,
           edge.color = edgecol,
           rotate.tree = -95,
           show.tip.label = TRUE,
           cex = 0.4)

# add a title and source
plot.phylo(tree_fewLabels, "u",
     main="Phylogenetic tree of human kinase domains",
     sub="source: www.kinase.com & Manning et al Science (2002) 398:1912-1934",
     rotate.tree = -95,
     use.edge.length = FALSE,
     edge.color = edgecol,
     show.tip.label = TRUE, font = 2,
     cex = 0.5)

# this looks quite good and is enough for today.

Visualizing the kinome in R - a 'simple' tree...

A paper by Manning et al in Science in 2002 showed an phylogenetic tree of the kinases in the human genome. With the help of a beautiful poster and web resources by Cell Signaling Technologies, this visualisation has become a classic among researchers working on protein kinases.

It has been used in many ways and the paper itself has be very extensively cited.
Examples include:

• Plant and animal pathogen recognition receptors signal through non-RD kinases.
• Global target profile of the kinase inhibitor bosutinib in primary chronic myeloidleukemia cells
• Kinase binding selectivity for representative inhibitors shown on the human kinome dendrogram

This blog post uses the sequences available on the protein kinase website (kinase.com) to create a tree using R. My hope is that this will be the first of few posts that will develop into being able to reproduce the visualisation from the Science and to render a similar image to that created by Cell Signaling Technology. This is really a key objective for me as I want to use this visualisation for my teaching.

If you are interested, please test the code and make comments. This is an ongoing project and I welcome feedback.

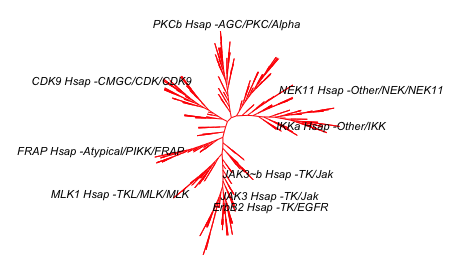

So here is the first version of the kinome phylogenetic tree:

I have made a more simple phylogenetic tree of the human proteins with the rel homology domain here which talks about the complexity of making trees.



Here is the script that makes this:
SCRIPT START

library(seqinr)
library(msa)
library(ape)

# first version of generating a the kinome visualisation in R
# data is here: http://kinase.com/kinbase/FastaFiles/Human_kinase_domain.fasta
# in fasta format...
# need to extract the data into R...
# need Biostrings package - downloaded as part of seqinr package

file <- c("http://kinase.com/kinbase/FastaFiles/Human_kinase_domain.fasta")

# step 1 is read in the FASTA files.
kinases <- readAAStringSet(file, format = "fasta")
# that seems to work.
kinases
# 516 sequences.
# good.

# step 2 do the multiple sequence alignment
kinaseAlign <- msa(kinases)
# takes a bit of time!  - about 3.5 min on my computer...
# currently using default substitution matrix and CLUSTALW
# creates an object with Formal class 'MsaAAMultipleAlignment' [package "msa"] with 6 slots

# step 3: convert Msa Alignment object into alignment for seqinr
kinaseAlign2 <- msaConvert(kinaseAlign, type="seqinr::alignment")
class(kinaseAlign2) # it's an alignment
# worked
# List of 4

# step 4: compute distance matrix - dist.alignment() function from the seqinr package:
d <- dist.alignment(kinaseAlign2, "identity")
# Class 'dist'

kinaseTree <- nj(d)  # from ape package, I think...
class(kinaseTree)
# class "phylo"
# List of 4

# good idea to save the tree locally... remove comment symbol
# write.tree(kinaseTree, file = "kinaseTree")
# to read back in:
# kinaseTree <- read.tree(file = "kinaseTree")

plot(kinaseTree,
     main="Phylogenetic Tree of kinases")
# too difficult to read so remove the tip.labels which are the kinase names.

plot(kinaseTree,
     main= "Phylogenetic Tree of kinases",
     show.tip.label = FALSE)

plot(kinaseTree,
     type = "unrooted",
     main= "Phylogenetic Tree of kinases",
     show.tip.label = FALSE)

# looks quite stylish a a little similar to visualisation in the Science paper
plot(kinaseTree, "u",
     use.edge.length = FALSE,
     show.tip.label = FALSE)

# need to add colour
# argument is edge.color
plot(kinaseTree, "u",
     use.edge.length = FALSE,
     show.tip.label = FALSE,
     edge.color = "red")

# want to add selected labels to give some orientation
# extract tip.labels
tipLabels <- kinaseTree$tip.label

# add some labels we like to orient ourselves:
kinaseLabels <- c("IKKa","JAK3","ErbB2",
                  "NEK11", "MLK1", "PKCb",
                  "CDK9", "FRAP")

# find these in the alignment - they will be tip labels
labelNo <- NULL
for(i in 1:length(kinaseLabels)){
  labelNo <- c(labelNo, grep(kinaseLabels[i], kinaseTree$tip.label))
}
# generates a vector of 9 numbers. Some labels in two names.

# make a vector of blank tiplabels
tipLabels_2 <-  rep('', length(kinaseTree$tip.label))

# add the labels we want to the vector...
for(i in 1:length(labelNo)){
  tipLabels_2[labelNo[i]] <- tipLabels[labelNo[i]]
}

# make a new tree
kinaseTree_fewLabels <- kinaseTree

# replace the tip labels with the shorter list.
kinaseTree_fewLabels$tip.label <- tipLabels_2

# make the plot with these
plot(kinaseTree_fewLabels, "u",
     use.edge.length = FALSE,
     show.tip.label = TRUE,
     edge.color = "red",
     cex = 0.7)

# remove "Hsap" using gsub() function
tipLabels_2 <- gsub("Hsap", "", tipLabels_2)
kinaseTree_fewLabels$tip.label <- tipLabels_2
plot(kinaseTree_fewLabels, "u",
     use.edge.length = FALSE,
     show.tip.label = TRUE,
     edge.color = "red",
     cex = 0.7)

# add a title and source and you have the image at the top...
plot(kinaseTree_fewLabels, "u",
     main="Phylogenetic tree of human kinase domains",
     sub="source: www.kinase.com & Manning et al Science (2002) 398:1912-1934",
     use.edge.length = FALSE,
     show.tip.label = TRUE,
     edge.color = "red",
     cex = 0.7)

# this looks quite good and is enough for today.
